KKMW4

Ultrasound Guided Thoracentesis Simulator - Full Set

Request a quote

Request a demo

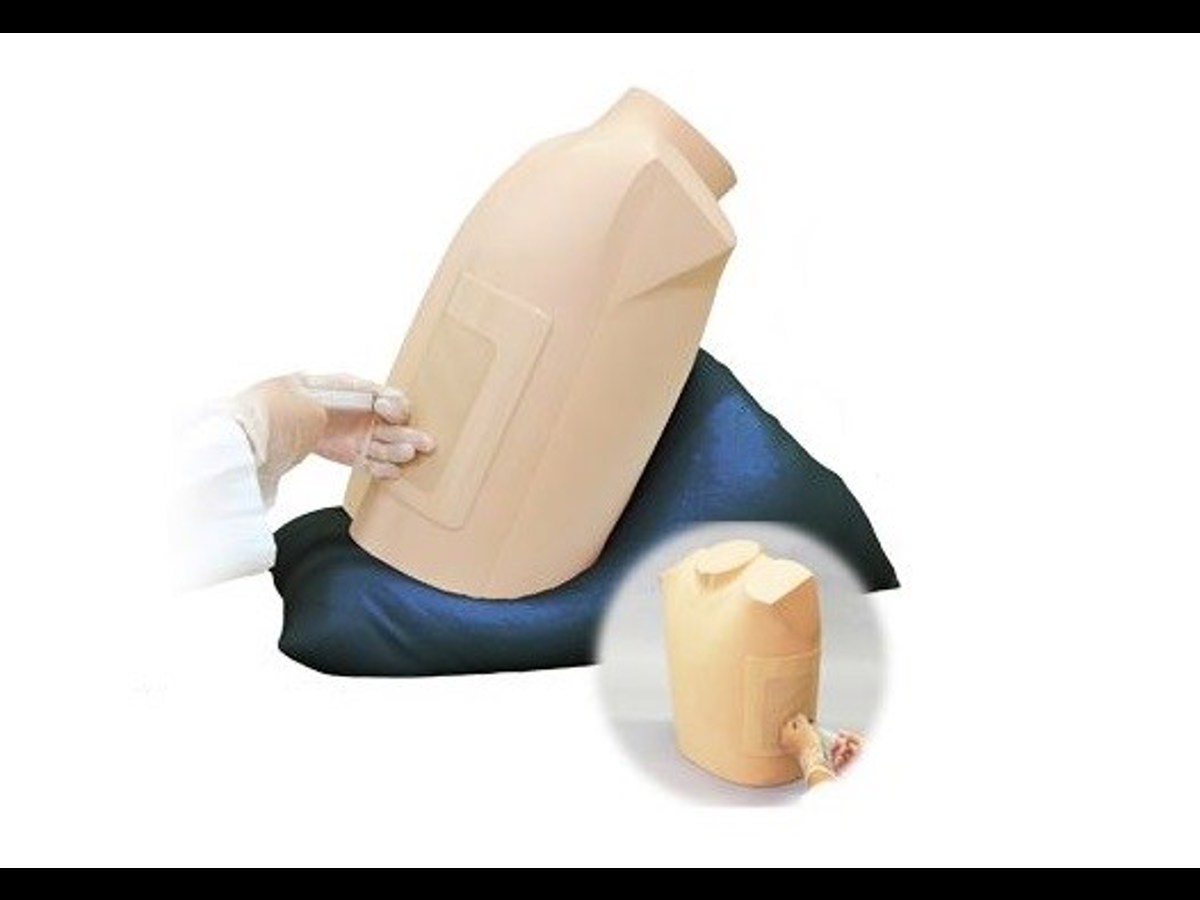

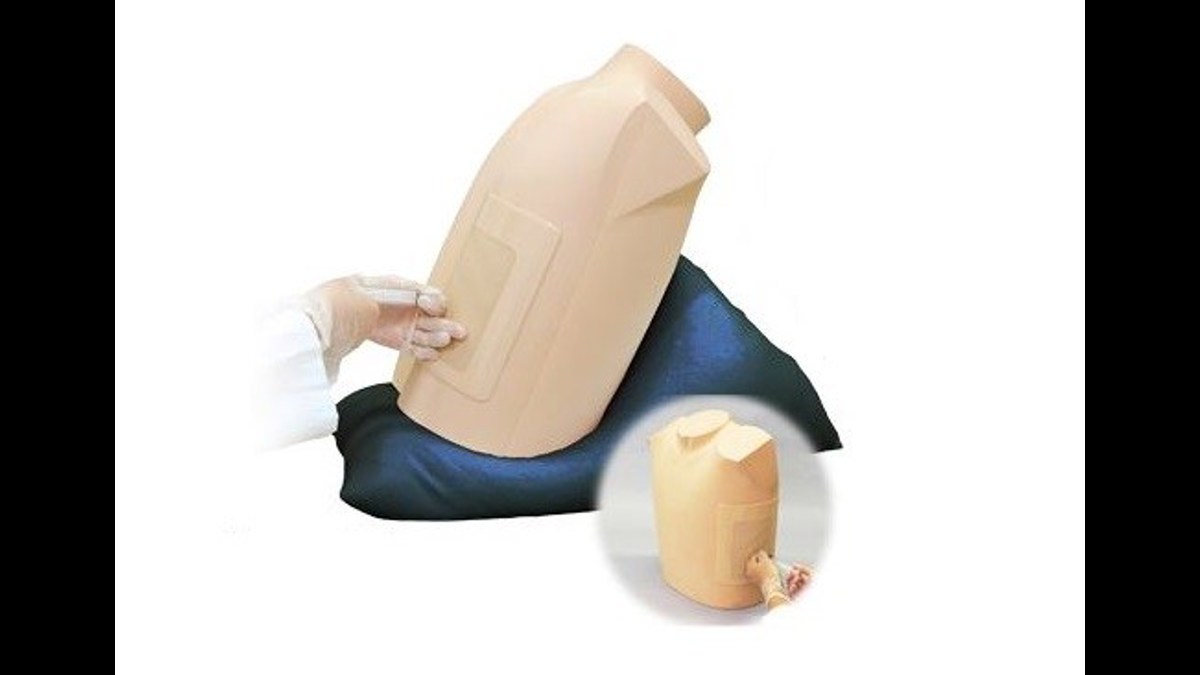

Ultrasound-guided thoracentesis trainer with two puncture sites and strap-on units that let the procedure be practised on a simulated patient. Effusion volume is adjustable.

The Ultrasound Guided Thoracentesis Simulator facilitates training for puncture and injection training under ultrasound guidance.

The two puncture units, mid-scapular line access and mid-axially line access, both include the ribs, soft tissue, pleura, lung and diaphragm. The ribs can be palpated from the surface to determine site for needle insertion. Volume of fluids can be controlled.

The strap-on puncture units can be worn by a simulated patient, so patient positioning and communication can be trained in the same session as the procedure itself. The set includes an adult chest model, a mid-axillary line unit, a mid-scapular line unit, an explanation model for thoracentesis, an irrigator, a funnel, a 50 ml syringe, a tube with three-way stopcock and a plastic jar. Torso size approximately W40 x D25 x H50 cm, weight approximately 9.2 kg. Made from soft resin and latex free. Recommended needles: 22G-23G (needles are not included).

Highlights

Excellent Ultrasound image
Ribs can be palpated
Strap-on puncture unites to learn patient positioning and professional-to-patient communication

Versatility

Two sites for access: right mid-scapular line and left mid-axillary line
Volume of pleural effusion can be controlled to set different levels of challenges
Offers images for appropriate locations to practice the subxiphoid approach and the parasternal approach

Anatomy

Anatomical parts include:
- Ribs
- Pleura
- Soft tissue
- Diaphragm
Mid-axillary line: 6-9th ribs
Mid-scapular line: 8-11th ribs

Weight & Dimensions

Weight: 15.9 kg
Width: 31 cm
Height: 51 cm
Length: 66 cm

Skills Gained

Recognition of landmarks by ultrasound
Palpating the ribs
Puncture and injection training

ICM Curriculum: Supporting Excellence for a CCT in Intensive Care Medicine, The Faculty of Intensive Care Medicine, 2021. Drainage of fluid.

Trauma & Orthopaedic Surgery Curriculum, Intercollegiate Surgical Curriculum Programme, 2021 Draining of fluid
